Automating MEP Design Starting with Plumbing Copilot®

Optimize your MEP design, and leave the tedious, and time-consuming tasks to Pipeit.

Book a demo free trial

Overcome Your MEP Design Challenges

Tight Design Schedules

With automated routing and intelligent design features, Pipeit's products accelerate the design process, helping you meet tight deadlines more efficiently.

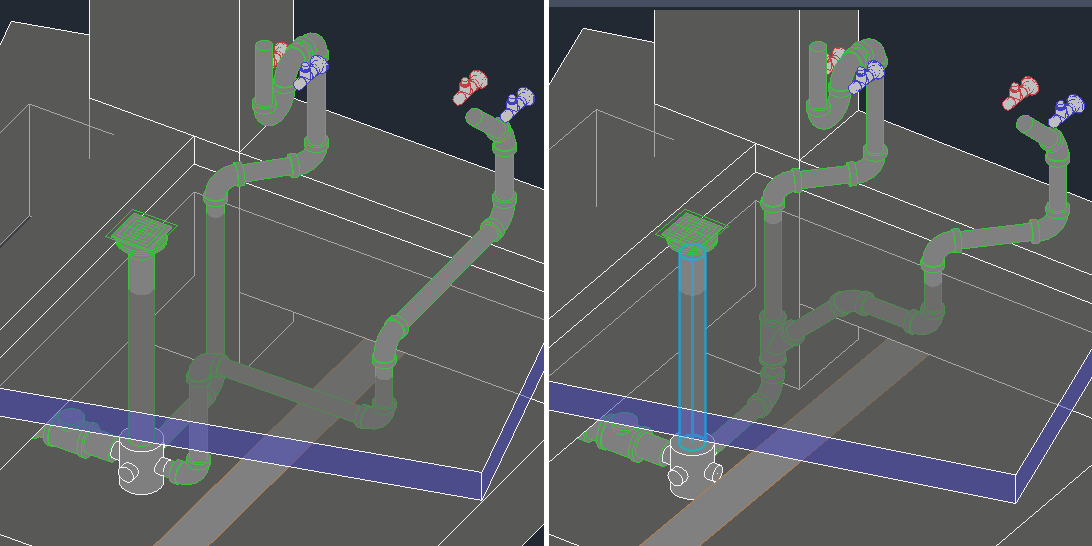

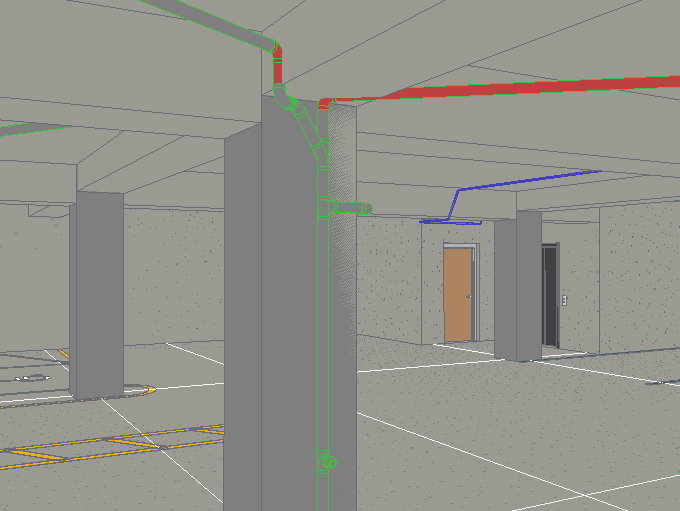

Clashes and reworks

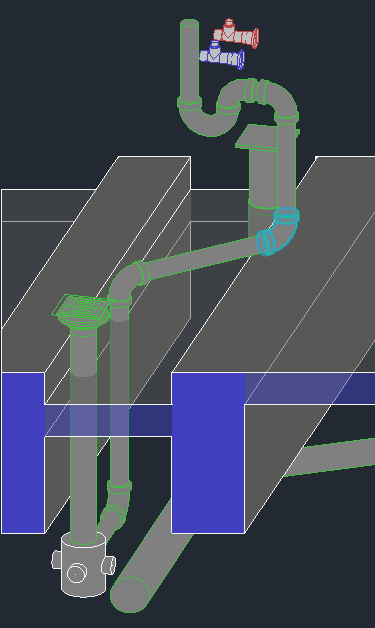

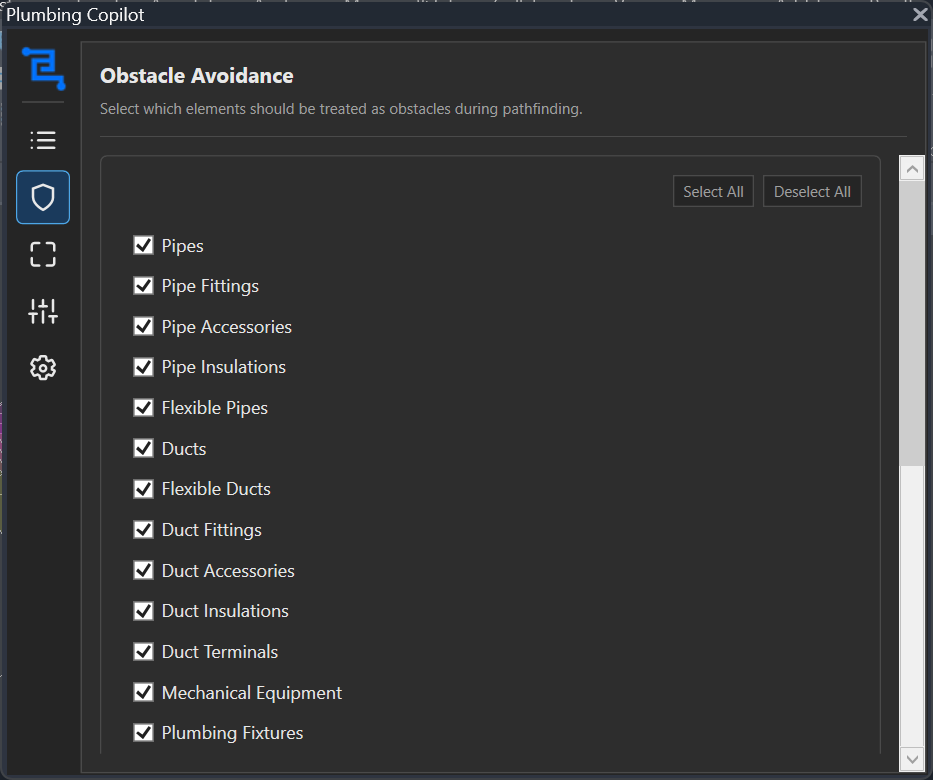

With advanced clash detection and avoidance features, Pipeit's products minimize errors and conflicts, leading to a smoother design process and fewer expensive revisions.

Manual and repetitive tasks

Pipeit automates tedious and time-consuming MEP design tasks, allowing you to focus on more valuable work.

Introducing Plumbing Copilot: Your Smart Solution For Faster Plumbing Design

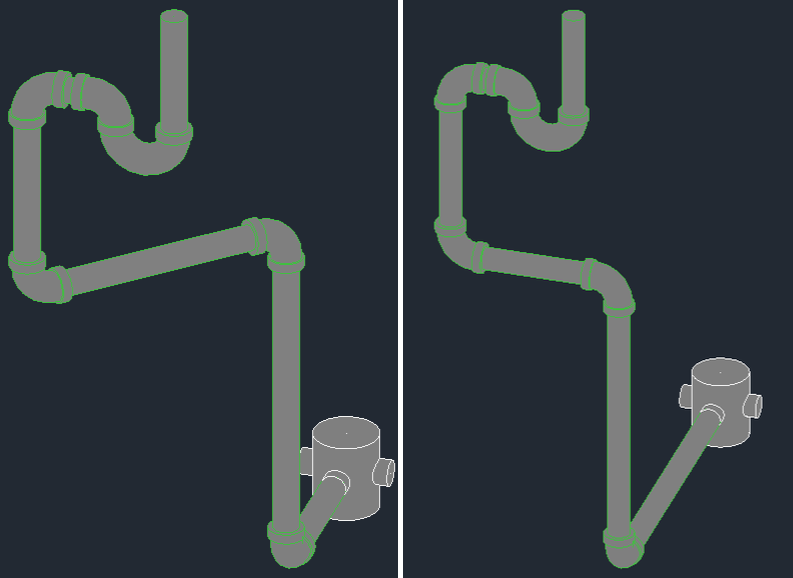

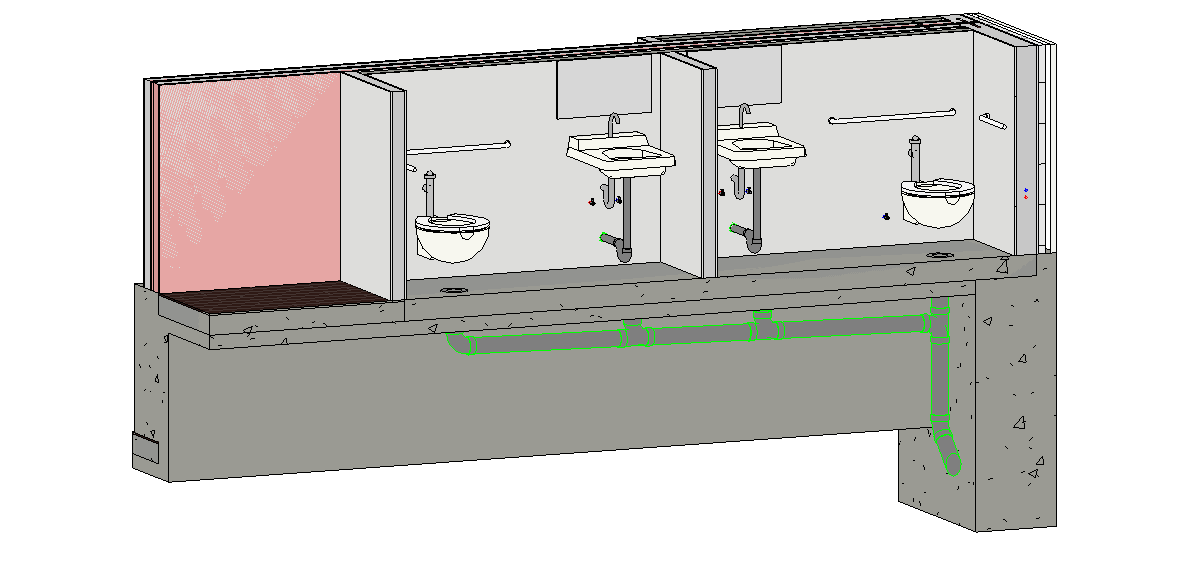

Plumbing Copilot is a Revit® plugin that automates the multi-step, error-prone plumbing design process, by efficiently connecting plumbing elements to create clash-free and optimal layouts.

How it works

1 Configure Your Options

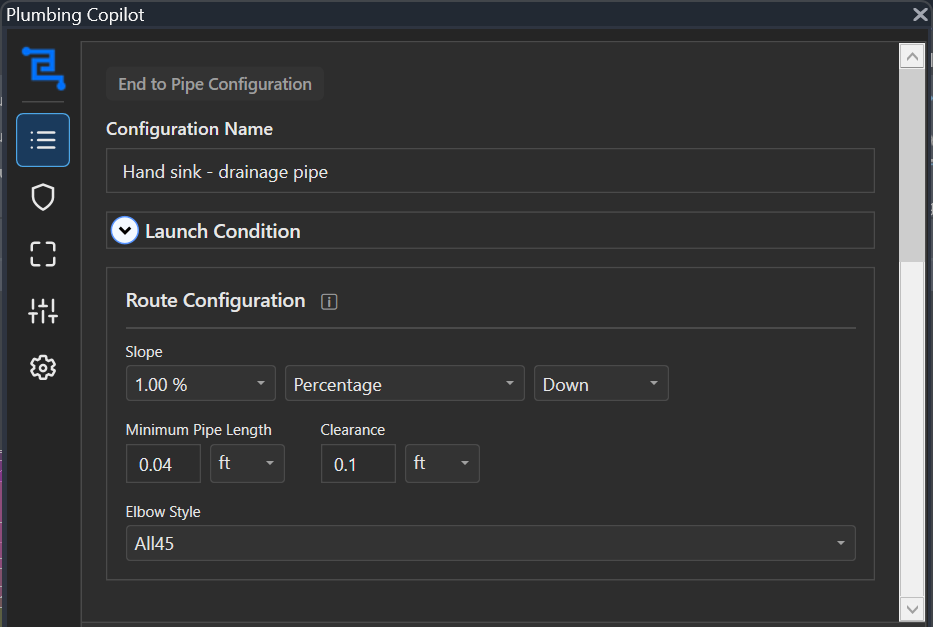

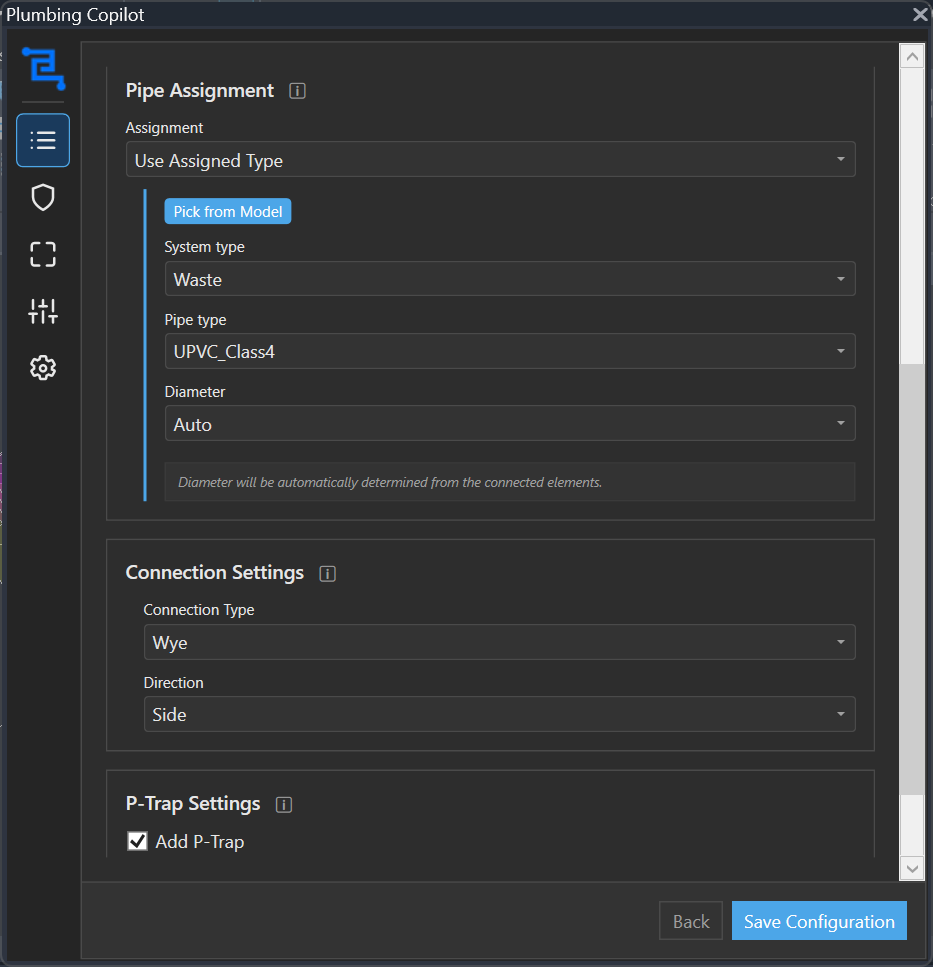

Set up your design requirements in the control panel, including pipe types, slopes, and connection specifications.

2 Select Your Elements

With an intuitive 2-click process, select the start and end elements and watch as Plumbing Copilot automatically generates a clash free route based on your configured options.

3 Repeat As Needed

Continue selecting additional elements as long as your configurations remain valid

Features

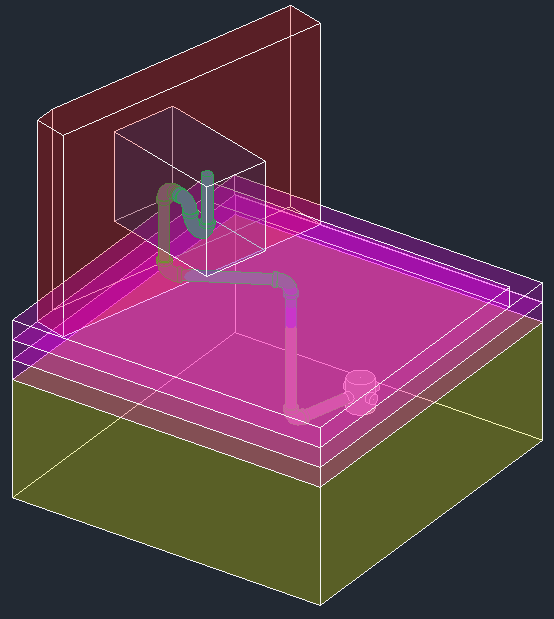

Routing Path Controls

Control and customize pipe
routing paths

Control the building elements and spaces that pipes can route through, such as walls, plumbing chases, and ceiling voids.Define no-go zones, building boundaries, and ceiling void height. Set the search range to specify the extent within which the software will look for suitable paths based on these parameters.

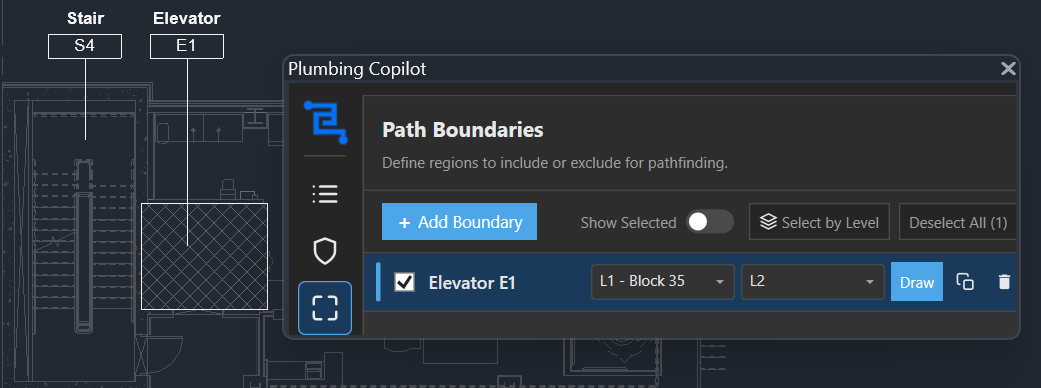

Path Constraints

Define no-go zones, building boundaries, and ceiling void heights to guide routing decisions and avoid restricted areas.

Routing Elements

Control pipe paths through walls, plumbing chases, and ceiling voids, ensuring seamless integration with existing structures.

Generated Route Specifications

Work effortlessly with your Revit® families

Plumbing Copilot lets you define connection types, pipe size, slope, system type, and clearance. These settings automatically link to Revit’s controls, keeping your design consistent and saving you the hassle of updating parameters in multiple places. It also supports most Revit® families for elbows, junctions, and reducers, giving you flexibility in component selection.

Connection Types

Choose between End-to-End connections or End-to-Pipe connections through junctions like tees and wyes

Pipe Parameters

Customize settings such as pipe slope, pipe type, and clearance to match design and code requirements.

Sloped Pipes Controls

Effortlessly adding a P-trap

Control the generation of sloped pipes with options to manage components like P-traps and elbows. Specify whether a P-trap should be included in the generated route, and optimize elbow connections to use only 45-degree elbows for both horizontal and vertical pipes when needed.

Elbow Restriction

This feature allows you to restrict the routing to 45-degree elbows only, eliminating the use of 90-degree elbows to maintain code compliance.

P-Trap Configuration

Choose whether to include a P-trap in the route and specify the exact P-trap family through the control panel

Cut Costs and Accelerate Design

Increased productivity

Frees up time for higher-value tasks

Seamless integration

Works with Revit® to seamlessly integrates into your existing workflow

Less reworks

Minimizes errors and clashes

Faster design

Enables rapid iterations for quicker project completion.

Pricing Plans

Monthly Yearly

Save 20% with annual billing

Individual Plan

$29

/month

Basic tier - Single plan
Up to 1 seats

Team Plan

$29

/user/month

Description
Basic tier - Team plan
Dynamic seats (min 2)

Enterprise

Custom

Contact us for pricing

Everything in Team plan
Dedicated account manager
Custom integrations
Premium support
